    Fully automatic medical nucleic acid detection stick packaging machine

    Video
  • This equipment is a new generation of packaging equipment independently developed by the company's R&D team and after years of testing and improvement, it has become the most stable and usable automatic packaging equipment...
    Control System
    It adopts Japan's Mitsubishi programmable controller control, color touch screen, adopts Mitsubishi frequency conversion speed, and adopts Japan, Europe, Taiwan and other electrical appliances. Equipped with comprehensive safety protection measures.
    Description

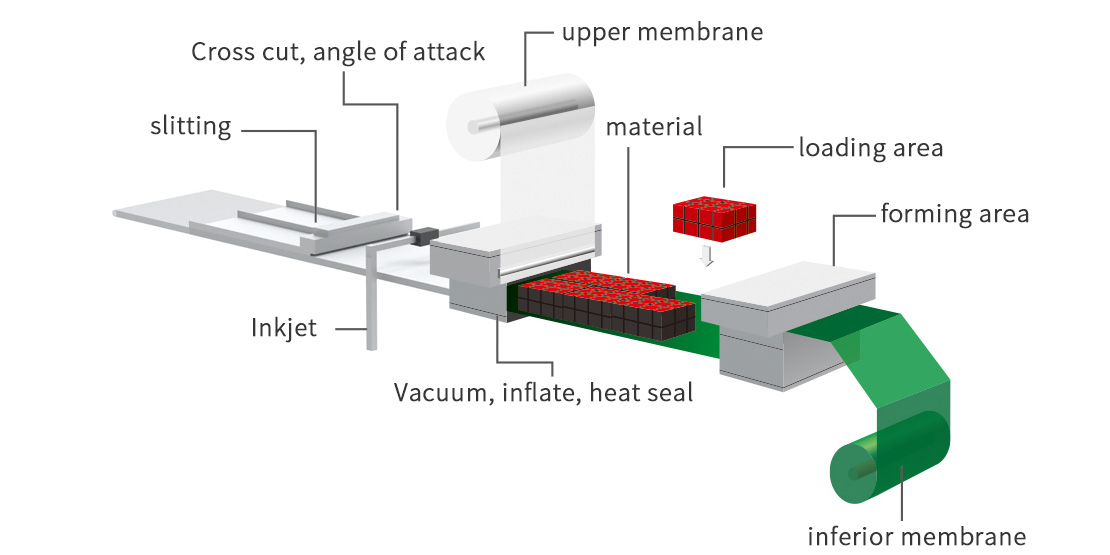

    This equipment is a new generation of packaging equipment independently developed by the company's R&D team and after years of testing and improvement, it has become the most stable and usable automatic packaging equipment. The machine can automatically form, heat seal and cut, and can be equipped with automatic coding or automatic coding system to truly realize automatic vacuum packaging.
    Details
    Order
  • Parameter

    Film width(upper)

    495(395)mm

    Film width(under)

    523(423)mm

    Working room size

    400 × (300-400)mm

    Air consumption

    ≥0.6MPa 0.3m³

    Vacuum

    -0.10MPa

    Voltage

    380V 50HZ

    Total power

    13kw

    Dimension

    6500 × 1170(1070) × 1 700mm

    The largest tensile strength

    80mm

    Weight

    2200kg
