Stretch film vacuum packaging machine_Ruian BEIDE Machinery & Technology CO., LTD

BD-420L/520L

Automatic fil .M drawing vacuum packaging machine

Tel：+86-13353371368（Mr.Tan）

BD-420L/520L Automatic fil .M drawing vacuum packaging machine

BD-420L520LAutomatic fil .M drawing vacuum packaging machine

Video
The equipment is a new generation of packaging equipment independently developed by the company's research and development team. After years of testing and improvement,

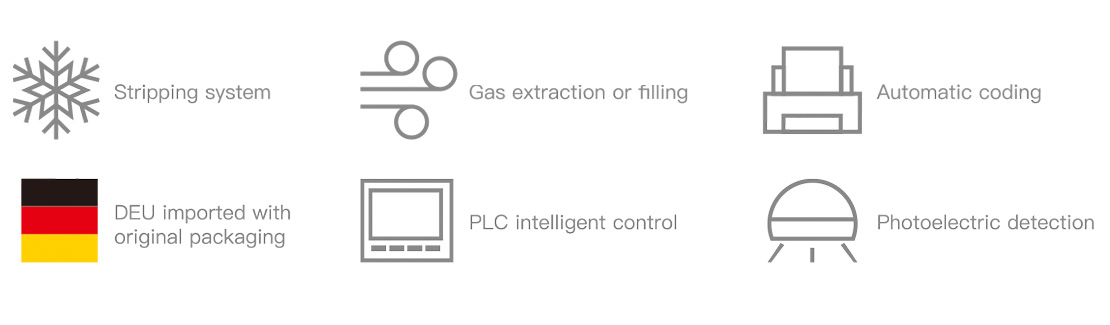

Control System

Adopt Japanese Mitsubishi programmable controller control, color touch screen, choose Mitsubishi frequency conversion speed, full The department uses electrical appliances from Japan, Europe, and Taiwan. With complete security protecon measures.

Description

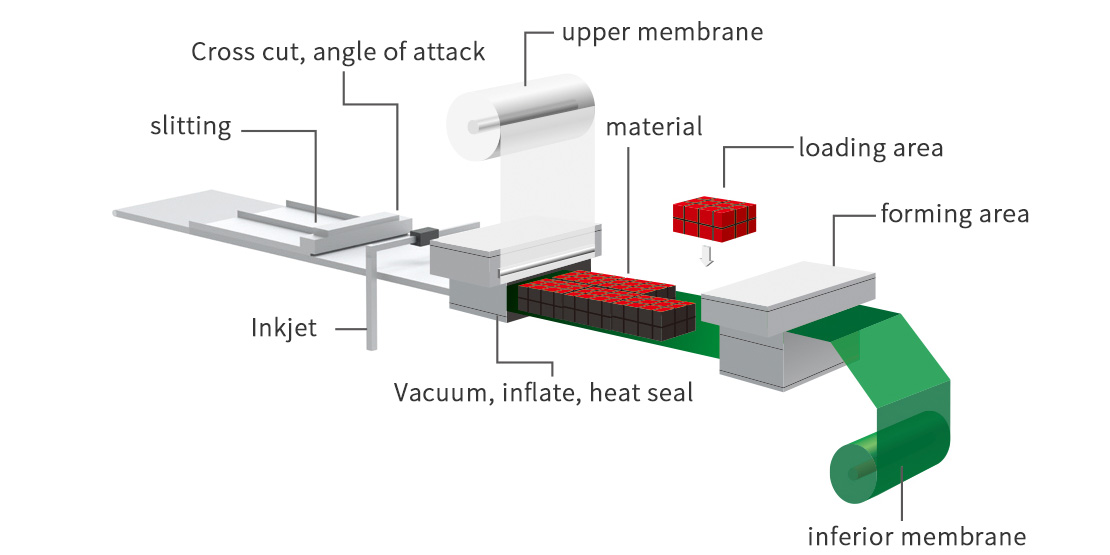

The equipment is a new generation of packaging equipment independently developed by the company's research and development team. After years of testing and improvement, it has become the most stable and usable automatic packaging equipment. The machine can automatically form, heat seal, cut, can be equipped with automatic code printing or automatic spraying system, truly achieve automatic vacuum packaging.

Details

Order

Parameter

Film width(upper)	495(395)mm
Film width(under)	523(423)mm
Working room size	400 × (300-400)mm
Air consumption	≥0.6MPa 0.3m³
Vacuum	-0.10MPa
Voltage	380V 50HZ
Total power	13kw
Dimension	6500 × 1170(1070) × 1 700mm
The largest tensile strength	80mm
Weight	2200kg
